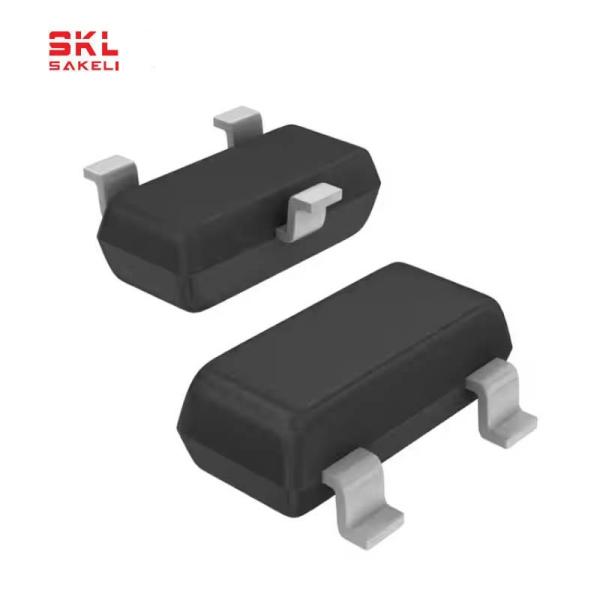

NTR5198NLT1G MOSFET Power Electronics TO-236-3 Package Transistor High Performance Applications

NTR5198NLT1G MOSFET Power Electronics

TO-236-3 Package Transistor High Performance Applications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	155mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.8 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	182 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	900mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3

This NTR5198NLT1G MOSFET Power Electronics is a 3-pin TO-236-3 package. It offers high efficiency and low on-resistance while operating at a low voltage. It is suitable for applications such as power switches, motor drivers and solenoid drivers. This device has a high breakdown voltage of 30V, which provides a higher level of protection for the system. It also has an optimized gate charge for reduced conduction loss and improved switching performance. The device is an N-channel MOSFET optimized for low voltage switching applications. It is RoHS compliant and is offered in a lead free package. This device is ideal for high frequency switching and can operate at frequencies up to 10MHz.
