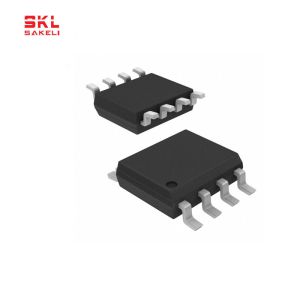

FDS6681Z MOSFET Power Electronics 30 Volt P-Channel PowerTrench® Package 8-SOIC30 Volt P-Channel PowerTrench®

Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	260 nC @ 10 V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	7540 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)

General Description
This P-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench ® process that has been especially tailored to minimize the on-state resistance.
This device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.

Features
• –20 A, –30 V. RDS(ON) = 4.6 mΩ @ V GS = –10 V
RDS(ON) = 6.5 mΩ @ V GS = –4.5 V
• Extended V GSS range (–25V) for battery applications
• HBM ESD protection level of 8kV typical (note 3)
• High performance trench technology for extremely low R DS(ON)
• High power and current handling capability
• Termination is Lead-free and RoHS Compliant
